Precision Flat Level

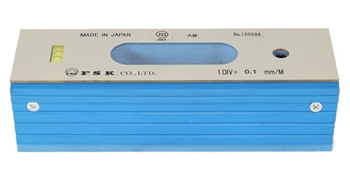

Precision Flat Level JIS A Class-AA
| Model No. | Size (mm) |
Sensitivity (m/mm) |
Weight (kg) | L*W*H (mm) |
| FLA1-150 | 150 | 0.02 | 1.3 | 150*42*44 |
| FLA2-150 | 0.05 | |||
| FLA3-150 | 0.1 | |||
| FLA1-200 | 200 | 0.02 | 1.8 | 200*42*44 |
| FLA2-200 | 0.05 | |||
| FLA3-200 | 0.1 | |||
| FLA1-250 | 250 | 0.02 | 2.8 | 250*50*47 |
| FLA2-250 | 0.05 | |||
| FLA3-250 | 0.1 | |||
| FLA1-300 | 300 | 0.02 | 3.3 | 300*50*47 |
| FLA2-300 | 0.05 | |||
| FLA3-300 | 0.1 |
Precision Flat Level JIS B Class
| Model No. | Size (mm) |
Sensitivity (m/mm) |
Weight (kg) | L*W*H (mm) |
| FAB1-100 | 100 | 0.02 | 0.9 | 100*42*44 |
| FAB2-100 | 0.05 | |||
| FAB3-100 | 0.1 | |||
| FAB1-150 | 150 | 0.02 | 1.3 | 150*42*44 |
| FAB2-150 | 0.05 | |||
| FAB3-150 | 0.1 | |||
| FAB1-200 | 200 | 0.02 | 1.8 | 200*42*44 |
| FAB2-200 | 0.05 | |||
| FAB3-200 | 0.1 | |||
| FAB1-250 | 250 | 0.02 | 2.8 | 250*50*47 |
| FAB2-250 | 0.05 | |||
| FAB3-250 | 0.1 | |||
| FAB1-300 | 300 | 0.02 | 3.3 | 300*50*47 |
| FAB2-300 | 0.05 | |||
| FAB3-300 | 0.1 |
Precision Flat Level Standard Class
| Model No. | Size (mm) |
Sensitivity (m/mm) |
Weight (kg) | L*W*H (mm) |
| FLB1-100 | 100 | 0.02 | 0.9 | 100*42*44 |
| FLB2-100 | 0.05 | |||
| FLB3-100 | 0.1 | |||
| FLB1-150 | 150 | 0.02 | 1.3 | 150*42*44 |
| FLB2-150 | 0.05 | |||
| FLB3-150 | 0.1 | |||
| FLB1-200 | 200 | 0.02 | 1.8 | 200*42*44 |
| FLB2-200 | 0.05 | |||
| FLB3-200 | 0.1 | |||
| FLB1-250 | 250 | 0.02 | 2.8 | 250*50*47 |
| FLB2-250 | 0.05 | |||
| FLB3-250 | 0.1 | |||
| FLB1-300 | 300 | 0.02 | 3.3 | 300*50*47 |
| FLB2-300 | 0.05 | |||
| FLB3-300 | 0.1 |
Precision Flat Level with Flat Base
| Model No. | Size (mm) |
Sensitivity (m/mm) |
Weight (kg) | L*W*H (mm) |
| FLF1-100 | 100 | 0.02 | 0.9 | 100*42*42 |
| FLF2-100 | 0.05 | |||
| FLF3-100 | 0.1 | |||
| FLF1-150 | 150 | 0.02 | 1.3 | 150*42*42 |
| FLF2-150 | 0.05 | |||
| FLF3-150 | 0.1 | |||
| FLF1-200 | 200 | 0.02 | 1.8 | 200*42*42 |
| FLF2-200 | 0.05 | |||
| FLF3-200 | 0.1 |
Precision Flat Level with Fine finished V Groove
| Model No. | Size (mm) |
Sensitivity (m/mm) |
Weight (kg) | L*W*H (mm) |
| FLV1-100 | 100 | 0.02 | 0.9 | 100*42*44 |
| FLV1-150 | 150 | 1.3 | 150*42*44 | |
| FLV1-200 | 200 | 1.8 | 200*42*44 | |
| FLV1-250 | 250 | 2.8 | 250*50*47 | |
| FLV1-300 | 300 | 3.3 | 300*50*47 |
